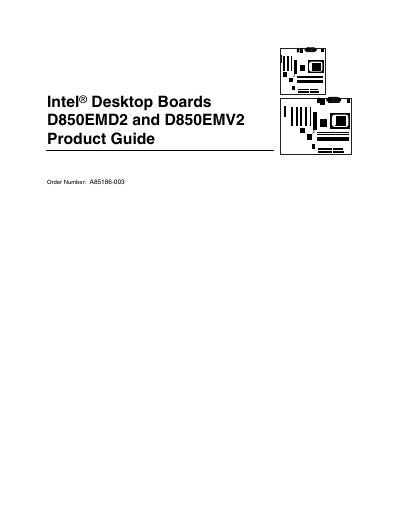

Intel D850EMD2 and D850EMV2 Desktop Board Product Guide

Introduces Intel® Desktop Boards D850EMD2 and D850EMV2 product features

Brand: Intel
Category: Other Computer Accessories
Document type: User Manual
Language: English
Pages: 78
File format: PDF
File size: 556 KB
Published: 22 March, 2012
Updated: 30 September, 2023
Models: D850EMD2, D850EMV2
MD5 checksum: C61423F7123E17E3270D262653F0EFC6
PDF: Intel D850EMD2 and D850EMV2 Desktop Board Product Guide PDF

About this manual

This guide details the features of Intel's D850EMD2 (microATX) and D850EMV2 (ATX) desktop boards, including supported processors, memory, chipset, USB ports, and expansion slots. It also describes the BIOS capabilities and hardware monitoring functions.

Installation instructions, BIOS update procedures, safety and EMC compliance, and troubleshooting information are included to help users integrate the boards into PCs safely and correctly.

What's inside

Desktop Board Features
Installing and Replacing Desktop Board Components
Updating the BIOS
Using the Setup Program Maintenance Menu
Technical Reference
Error Messages and Indicators
Regulatory Compliance

Specifications

Form Factor	microATX (9.6" x 9.6") for D850EMD2; ATX (9.6" x 12") for D850EMV2
Supported Processor	Intel Pentium 4 in mPGA478 socket, 533 MHz or 400 MHz FSB
USB Ports	Up to five USB 2.0 ports (2 rear, 2 front, 1 optional CNR)

Frequently asked questions

What processors are supported by the D850EMD2 and D850EMV2 boards?

They support Intel Pentium 4 processors in an mPGA478 socket with either a 533 MHz or 400 MHz front‑side bus.

How many USB ports are available on these desktop boards?

Each board provides up to five USB 2.0 ports – two on the rear panel, two on the front panel, and one optional port via the CNR connector.

What are the form factors of the D850EMD2 and D850EMV2 boards?

The D850EMD2 is a microATX board (9.6" × 9.6"), while the D850EMV2 is an ATX board (9.6" × 12").
