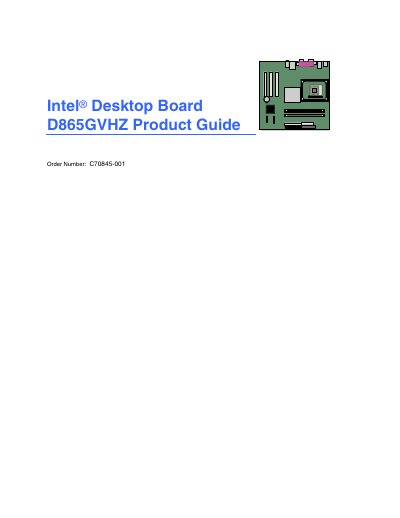

Intel D865GVHZ Desktop Board Product Guide

Intel® Desktop Board D865GVHZ Product Guide

Brand: Intel
Category: Motherboard
Document type: User Manual
Language: English
Pages: 88
File format: PDF
File size: 1.6 MB
Published: 22 March, 2012
Updated: 30 September, 2023
Model: D865GVHZ
MD5 checksum: 9E2693132A7672951FA77F5A85FEBD6B
PDF: Intel D865GVHZ Desktop Board Product Guide PDF

About this manual

This Product Guide is intended for technically qualified personnel who need to install, configure, and maintain the Intel D865GVHZ desktop board. It covers board layout, component installation, BIOS update procedures, and safety regulations.

The document includes feature summaries, detailed installation instructions, BIOS setup menus, hardware resource tables, error‑message references, and extensive regulatory compliance information for U.S., Canadian, European, and other markets.

What's inside

Desktop Board Features
Installing and Replacing Desktop Board Components
Updating the BIOS
Using the BIOS Setup Program
Desktop Board Resources
Error Messages and Indicators
Regulatory Compliance

Specifications

Form Factor	MicroATX (9.6 x 8.5 inches)
Maximum Memory	Up to 4 GB DDR SDRAM (dual‑channel)
USB Ports	Eight USB 2.0 ports (four rear, four internal headers)

Frequently asked questions

How many USB ports are available on the board?

The board provides up to eight USB 2.0 ports, with four on the back panel and four routed to internal headers.

What is the form factor of the D865GVHZ desktop board?

It uses a MicroATX form factor measuring 9.6 inches by 8.5 inches.
