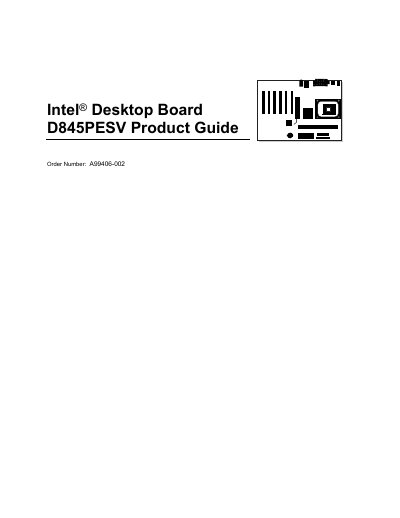

This document is a product guide for the Intel® Desktop Board D845PESV, describing the features and characteristics of the product.
This guide covers the features and specifications of the Intel D845PESV desktop board, including supported processors, memory configurations, chipset details, and expansion capabilities. It also provides detailed installation steps for the board, processor, memory modules, and peripheral devices.
Additional sections describe BIOS configuration, power management, hardware monitoring, firmware updates, and safety and EMC regulatory compliance. The document includes tables, diagrams, and reference information for integrators and end users.
| Form Factor | ATX 12.0" x 8.2" |
|---|---|
| USB Ports | Up to six USB 2.0 ports (four rear, two front) |
| Expansion Slots | Six PCI slots and one AGP connector |
| BIOS | Intel/AMI BIOS with 4 Mbit flash memory |
The board requires an ATX12V‑compliant power supply with two power connectors to provide extra power to the chipset and processor.
It supports up to six USB 2.0 ports—four on the back panel and two on the front‑panel header.
