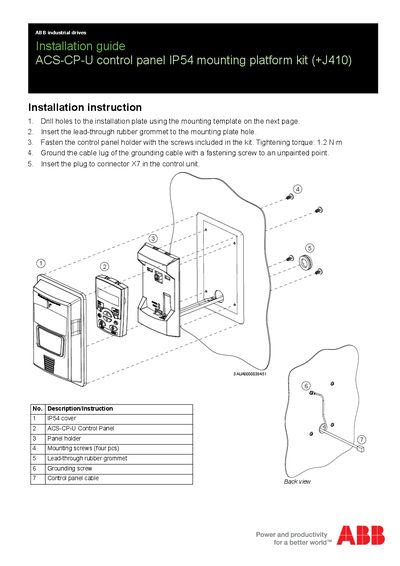

This document is an installation guide for the ABB industrial drive ACS-CP-U control panel. It provides instructions and materials required for installing the control panel, as well as a dimension drawing and back view of the panel. The control panel has an IP54 protection rating and comes with a mounting platform kit.
This guide provides the installation procedure for the ABB ACS-CP-U control panel IP54 mounting platform kit (+J410). It includes preparation steps, required tools, and safety notes for mounting the panel on the installation plate.
Key steps cover drilling holes using the provided template, inserting the lead‑through rubber grommet, fastening the panel holder with 1.2 N·m torque screws, grounding the cable lug to an unpainted point, and connecting the plug to connector X7 in the control unit. Dimension drawings and part lists are included for reference.
| Tightening torque | 1.2 N·m |
|---|---|
| IP rating | IP54 |
| Depth of IP54 cover | 35 mm |
The tightening torque is 1.2 N·m.
Ground the cable lug of the grounding cable with a fastening screw to an unpainted point.
