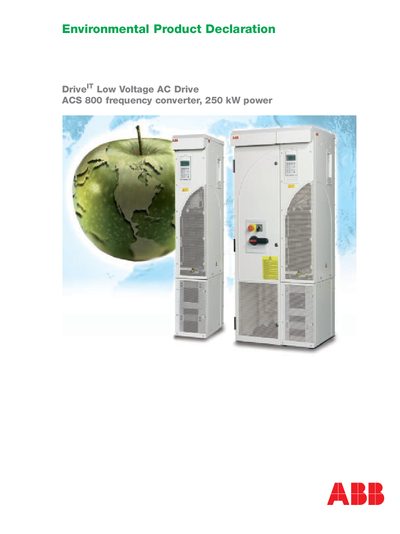

This document is about the environmental declaration of ABB ACS 800 frequency converter
This document provides an Environmental Product Declaration (EPD) for the ABB ACS 800 low‑voltage AC drive. It describes the organisational framework, ISO 14001 certification, and the life‑cycle assessment methodology used to evaluate the product’s environmental performance.
Key sections include the functional unit (1 kW of rated output), system boundaries covering raw material extraction to end‑of‑life disposal, material composition, resource utilization, energy consumption, waste classification, and impact categories such as global warming potential, acidification, and eutrophication.
| Model | ACS 800-02-0320-5 |
|---|---|
| Power range | 1.1 to 3,000 kW |
| Rated power (example) | 250 kW |
| Protection class | IP 21 |
The functional unit is 1 kW of rated output power.
An estimated lifetime of 15 years with 5,000 hours of operation per year is used.
Global warming potential accounts for 99.77 % of the total impact in the usage phase.
Yes, most parts can be recycled, though some need to be fragmented to separate material types.
