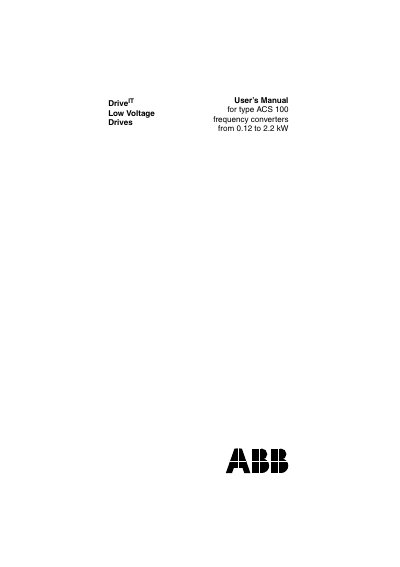

This document is the manual of ACS 100 frequency converter, which introduces the features and usage of the product
This manual covers safe handling and installation of the ABB ACS 100 frequency converter, including warnings about dangerous voltages, required tools, and environmental limits. Detailed sections guide users through mounting, wiring, configuring the control terminals, and powering up the drive.
Technical specifications such as input voltage, output current limits, and protection features are listed, along with programming instructions, diagnostic displays, and maintenance procedures. The document also includes compliance information and accessory options.
| Input voltage (U1) | 200 V‑240 V ±10 % 50/60 Hz |
|---|---|
| Nominal motor power (PN) | 0.12 kW – 2.2 kW |
| Continuous output current (4 kHz) | 1.0 A – 3.0 A |
| Max. output current (4 kHz) | 1.5 A – 4.5 A |
| Overvoltage trip limit | 420 V DC |
| Undervoltage trip limit | 200 V DC |
| Overtemperature limit | 90 °C (heat sink) |
Only a competent electrician may install it, dangerous voltages are present when connected, wait at least 5 minutes after disconnecting before removing the cover, and the unit is not field‑repairable.
The drive operates on an input voltage of 200 V to 240 V AC, ±10 % tolerance, at 50 Hz or 60 Hz.
The overvoltage trip limit is 420 V DC and the undervoltage trip limit is 200 V DC.
The maximum continuous output current at 4 kHz ranges from 1.0 A for the smallest model up to 3.0 A for the 2.2 kW version.
