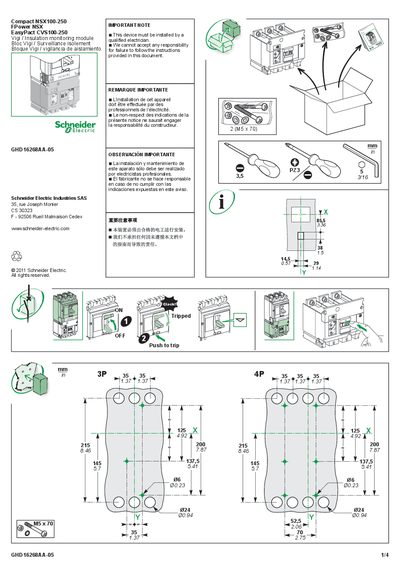

Schneider Electric GHD16268AA-05 Insulation Monitoring Module Installation Manual

This document is an instruction manual for a product called Vigi, which is an insulation monitoring module that can be installed on NSX100-250 power supplies

Brand: Schneider
Category: Other
Document type: Installation Guide
Language: English
Pages: 4
File format: PDF
File size: 3.2 MB
Published: 21 March, 2012
Updated: 30 September, 2023
MD5 checksum: F22CDF536B78EB6E76F64A086D3704FA
PDF: Schneider Electric GHD16268AA-05 Insulation Monitoring Module Installation Manual PDF

About this manual

This manual provides the installation instructions for the Schneider Electric GHD16268AA-05 insulation monitoring module. It emphasizes that the device must be installed only by qualified electricians and that Schneider assumes no responsibility for improper installation.

The document lists the model number, part numbers (LV429269, LV429270, LV429214, LV429375) and key electrical ratings such as 16 0/250 A and 225 A at 40 °C. These details help ensure correct wiring and compliance with safety standards.

What's inside

Important Safety Note
Installation Requirements
Responsibility Disclaimer
Device Identification
Electrical Ratings

Specifications

Model number	GHD16268AA-05
Current rating	16 0/250 A
Maximum current (40 °C)	225 A

Frequently asked questions

Is Schneider Electric responsible if the installation instructions are not followed?

No, Schneider Electric does not accept responsibility for failures caused by not following the instructions.
