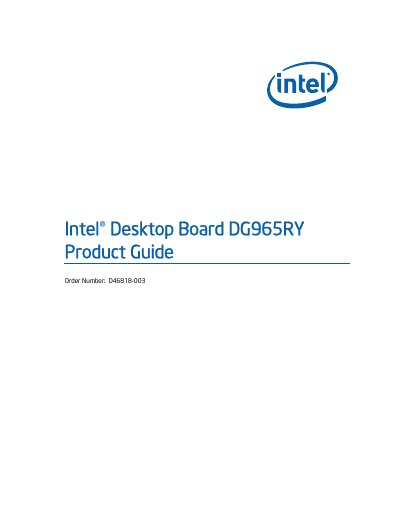

This document is the product guide for Intel® Desktop Board DG965RY. It describes the features and characteristics of this motherboard.
This guide covers the main features of the Intel DG965RY desktop board, including its ATX form factor, Intel G965 Express chipset, DDR2 memory support up to 8 GB, and integrated graphics, audio, USB, SATA, and Gigabit Ethernet. It also lists supported operating systems and provides detailed installation, component replacement, and BIOS update instructions.
Regulatory compliance sections describe FCC, CE, and other international certifications, as well as safety and EMC requirements. The document is intended for technically qualified personnel who need to integrate the board into PCs or similar systems.
| Form Factor | ATX (320.04 mm × 243.84 mm) |
|---|---|
| Processor Support | Intel processor in LGA775 package |
| Memory Capacity | Up to 8 GB DDR2 SDRAM (four 240‑pin DIMM slots) |
| Chipset | Intel G965 Express Chipset |
| Graphics | Intel G965 with Intel GMA X3000 |
| Audio Subsystem | 6‑channel (5.1) onboard, Intel High Definition Audio |
| USB Ports | Up to 10 USB 2.0 ports (6 rear, 4 via headers) |
| SATA Interfaces | Four SATA 3.0 Gb/s channels |
| LAN Controller | Intel 82566DC Gigabit Ethernet |
| Power Management | ACPI with Suspend to RAM and Wake‑on‑LAN/USB |
It provides up to 10 USB 2.0 ports – six on the back panel and four via internal headers.
The board uses an ATX form factor measuring 320.04 mm by 243.84 mm.
It uses the Intel G965 Express Chipset.
