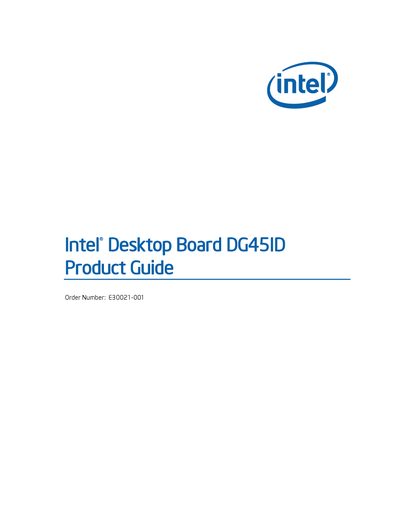

Intel® Desktop Board DG45ID Product Guide is a product guide published by Intel Corporation. It introduces the features and characteristics of the DG45ID desktop board.
This guide covers the layout and component installation for the Intel DG45ID desktop board, including detailed procedures for installing the I/O shield, processor, memory modules, PCI‑Express cards, and SATA cables. It also explains BIOS update methods, RAID configuration with Intel® Matrix Storage Technology, and Intel® Rapid Recover Technology setup.
Regulatory information is included, with FCC Class B compliance, Canadian and EU certification details, RoHS and lead‑free statements, and safety standards. The document is intended for technically qualified personnel who need to integrate the board into PCs or similar systems.
| Chipset | Intel® G45 Express |
|---|---|
| Graphics Interface | PCI Express x16 |
| Video Outputs | DVI‑I, HDMI |
| USB Support | Hi‑Speed USB 2.0 |
| SATA Interface | Serial ATA |
| LAN Subsystem | Integrated Ethernet |
| Audio Subsystem | Integrated audio |
| FCC Compliance | Class B digital device, Part 15 |
The board complies with Part 15 of the FCC Rules as a Class B digital device, meaning it must not cause harmful interference and must accept any interference received.
The BIOS can be updated using the Intel® Express BIOS Update Utility, an ISO image BIOS update file, or the Iflash Memory Update Utility as described in the guide.
The DG45ID board supports DDR2 DIMMs and provides guidelines for dual‑channel memory configurations.
