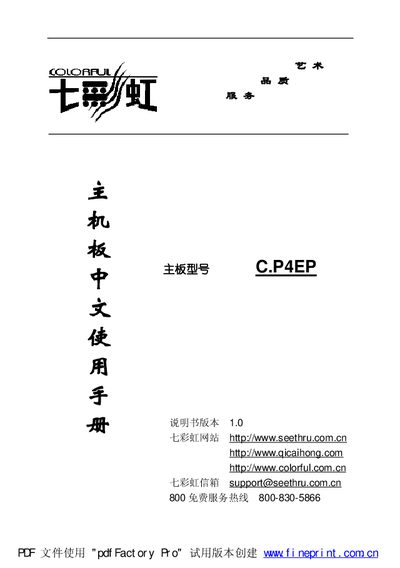

The C.P4EP main board manual introduces the main board specifications, hardware settings and BIOS settings.
This manual covers the Colorful C.P4EP ATX motherboard, detailing its hardware components, supported processors, memory types, and expansion slots. It includes a full specification table, wiring diagrams, and step‑by‑step instructions for installing the CPU, memory modules, and peripheral devices.
The guide also explains BIOS setup options, power‑management features, and common POST error messages, offering troubleshooting tips and contact information for technical support. This manual is written in Chinese.
| CPU socket | Socket478 |
|---|---|
| Chipset | Intel RG82845E (MCH) and Intel 82801BA (ICH2) |
| Memory slots | 2 x 184‑pin DIMM slots, up to 2 GB DDR200/266 |
| AGP interface | AGP 4X, 1.5 V only |
| Front‑side bus | 533 MHz |
| USB ports | 4 USB ports |
| Power requirement | Standard ATX P4 power supply |
| Board dimensions | 21 cm × 30.5 cm |
Press “Y” and then Enter to store all changes in the CMOS and exit the setup; the system will then restart.
