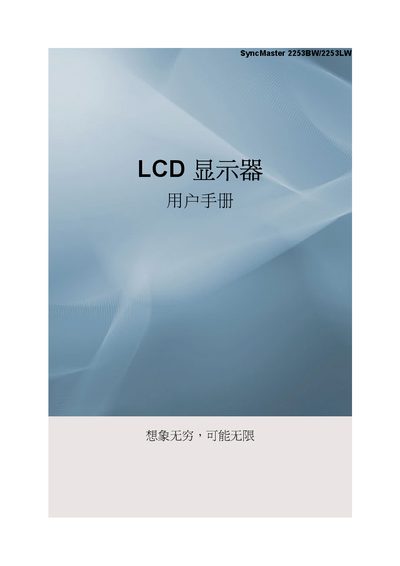

This manual describes the SyncMaster 2253BW/2253LW LCD Monitor's safety precautions, installation instructions, operating instructions, power management instructions, and cleaning instructions.
This manual covers all safety precautions for the SyncMaster 2253BW/2253LW LCD monitor, including proper handling of power cords, avoiding fire hazards, and protecting the display from dust, moisture, and impact. It also details the recommended installation environment, VESA‑mounting instructions, and how to securely attach the monitor to a stand or wall.
The guide explains initial setup procedures such as selecting language, adjusting resolution, using the on‑screen display, and configuring brightness, contrast, and input sources. Additional sections describe cleaning methods, button functions, and technical specifications like screen size, pixel pitch, and supported video signals. This manual is written in Chinese.
| Screen size | 22 inches (55 cm) |
|---|---|
| Resolution (optimal) | 1680 × 1050 @ 60 Hz |
| Pixel pitch | 0.282 mm (horizontal & vertical) |
| Maximum pixel clock | 146 MHz |
| Power supply | AC 100‑240 V, 50/60 Hz |
| Weight (with stand) | 5.4 kg |
| Input signals | Analog RGB, DVI (digital) |
| VESA mount pattern | 100 mm × 100 mm |
Press the brightness button (marked with a sun icon) on the front panel to increase or decrease the screen brightness.
Yes, the monitor supports a VESA‑compatible 100 mm × 100 mm mounting interface; attach it with the supplied screws and a compatible wall‑mount bracket.
The rear panel provides a DVI‑IN port for digital video and an RGB (15‑pin) D‑Sub connector for analog signals.
