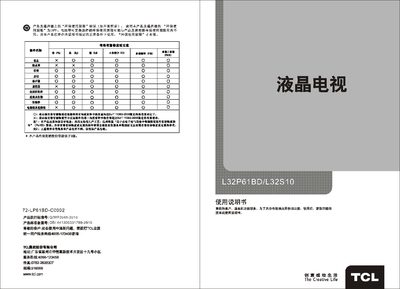

This manual covers safety warnings, installation steps, and basic operation of the TCL L32P61BD LCD TV. It explains how to connect antennas, power, and USB devices, and provides guidance on using the remote control and menu functions.
Detailed sections describe the TV’s picture and sound settings, USB media playback, automatic playback, and a comprehensive fault analysis with troubleshooting procedures. This manual is written in Chinese.
| Audio output power | Left+Right 5W |
|---|---|
| Rated power consumption | 55W |
| Screen diagonal | ≈80 cm |
| Operating voltage | 110‑240 V, 50/60 Hz |
| Working temperature | 5 °C‑35 °C |
| Storage temperature | -15 °C‑45 °C |
| Supported video formats | H.264, MPEG‑2, MPEG‑4, XVID, etc. |
| Supported image formats | JPEG, BMP, PNG |
| Supported audio formats | MP3, WMA |
Press the ‘节目+/-’ (Program +/-) keys on the remote to switch channels; you can also press the numeric keys to enter a channel number directly.
Insert the base connector into the TV, attach the metal plate, and secure with the indicated screws as shown in the installation diagrams.
