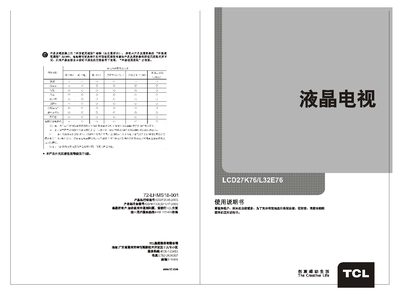

This manual introduces the TCL LCD27K76 LCD television, describing its high‑resolution display, low power consumption, and supported video standards such as PAL, NTSC, SDTV and HDTV. It outlines the main functions, including automatic and manual channel search, infrared remote control, and computer display capabilities via VGA.
The guide also covers installation, connection of audio/video sources, safety warnings, cleaning instructions, and a troubleshooting section that helps resolve issues like no picture, no sound, or interference. Technical specifications are listed at the end of the document. This manual is written in Chinese.
| Audio Output Power | Left+Right: 48W / 5W |
|---|---|
| Working Voltage | 220V‑50Hz |
| Rated Power Consumption | 120W (LCD27K76) / 88W (L32E76) |
| Screen Diagonal Size | 79 cm (LCD27K76) / 46 cm (L32E76) |
| Dimensions with Base | 838 mm × 616 mm × 220 mm (LCD27K76) |
| Weight with Base | ≈18 kg (LCD27K76) / ≈13 kg (L32E76) |
| Operating Temperature | -5 °C to 35 °C |
| Storage Temperature | -15 °C to 40 °C |
| Reception Frequency | 470 MHz (all cable channels) |
| Supported TV Standards | PAL, DAK |
| AV Standards | PAL, NTSC |
| RF Antenna Input | 75 Ω unbalanced |
| Video Input (A‑Video) | 75 Ω, 10 Vp‑p, RCA connector |
| Audio Input (S‑Video) | 1 D‑KD, 0.5 Vrms |
Use a dry, soft, lint‑free cloth or a cleaning agent made for LCD screens; do not press the surface, and never use water or other chemicals.
