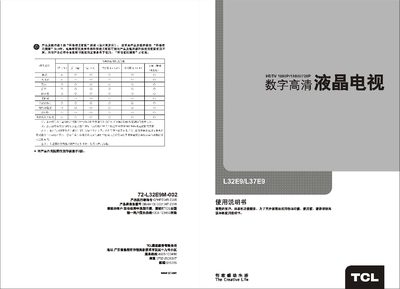

This manual provides safety warnings, installation instructions, and basic operation guidance for the TCL L32E9 LCD TV. It includes detailed diagrams of the front and rear panels, remote‑control usage, and connection ports for video, audio, and USB devices.
Technical specifications, troubleshooting tips, and USB media support are listed at the end of the document, helping users configure picture settings, adjust audio, and resolve common issues such as no picture or sound. This manual is written in Chinese.
| Working voltage | 220V‑50Hz |
|---|---|
| Rated power consumption | 120W |
| Screen diagonal size | 30 inches |
| Dimensions (W×H×D) without stand | 796 mm × 534 mm × 104 mm |
| Weight without stand | ≈4.5 kg |
Open the battery compartment on the back of the remote, insert two AA (7 V) batteries with the correct polarity, and close the cover.
The TV can play JPEG, BMP images; MP3 audio; AVI, MPG video; and TXT text files from a USB device formatted as FAT/FAT32.
