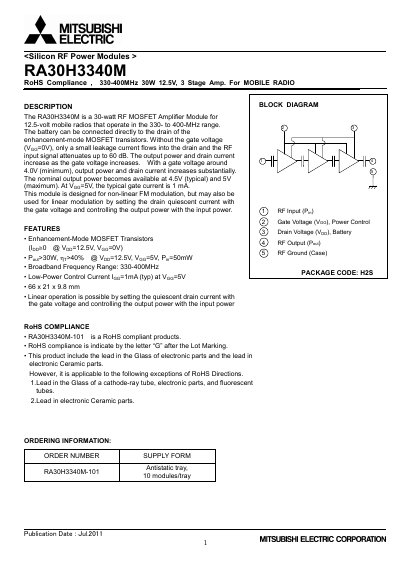

The RA30H3340M is a 30-watt RF MOSFET Amplifier Module for 12.5-volt mobile radios that operate in the 330- to 400-MHz range.
The RA30H3340M is a 30‑watt RF MOSFET amplifier module designed for 12.5 V mobile radios operating in the 330‑400 MHz band. It uses enhancement‑mode MOSFET transistors with low‑power gate control and can be configured for non‑linear FM or linear modulation.
The document provides maximum ratings, electrical characteristics, typical performance curves, mechanical dimensions, recommended mounting procedures, thermal design guidance and safety precautions for reliable integration into RF equipment.
