The document describes a 13-watt RF MOSFET amplifier module for 12.5-volt mobile radios. The module features enhancement-mode MOSFET transistors, a broadband frequency range, low-power control current, and the possibility of linear operation.

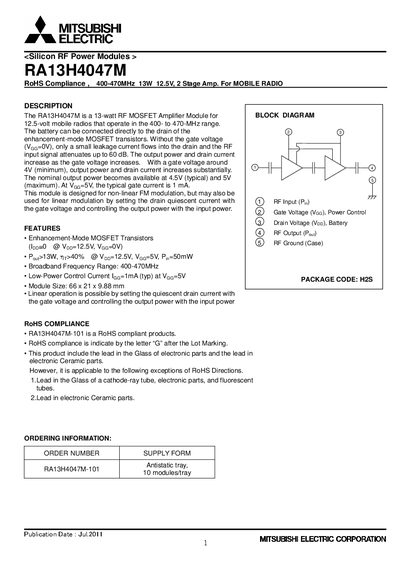

The RA13H4047M is a 13‑watt RF MOSFET power‑amplifier module designed for 12.5‑V mobile radios operating in the 400‑470 MHz band. It uses enhancement‑mode MOSFET transistors and provides up to 13 W output power with a typical gate current of 1 mA.
Key features include a broadband frequency range (400‑470 MHz), low‑power gate control, RoHS compliance, and a compact package (66 × 21 × 9.88 mm). The module can be used for non‑linear FM modulation or linear AM modulation by adjusting gate voltage and input power. Recommended mounting includes a flat heat sink, a tightening torque of 4.0‑6.0 kgf‑cm, and careful ESD handling.
| Frequency Range | 400‑470 MHz |
|---|---|
| Output Power | 13 W |
| Gate Current | 1 mA (typ) |
| Package Size | 66 × 21 × 9.88 mm |
| Recommended Mounting Torque | 4.0‑6.0 kgf‑cm |
| RoHS Marking | Letter “G” after lot marking |
Use a tightening torque of 4.0 to 6.0 kgf‑cm for the M3 mounting screws.
RoHS compliance is indicated by the letter “G” after the lot marking on the product.
The typical gate current at a gate voltage of 5 V is about 1 mA.
