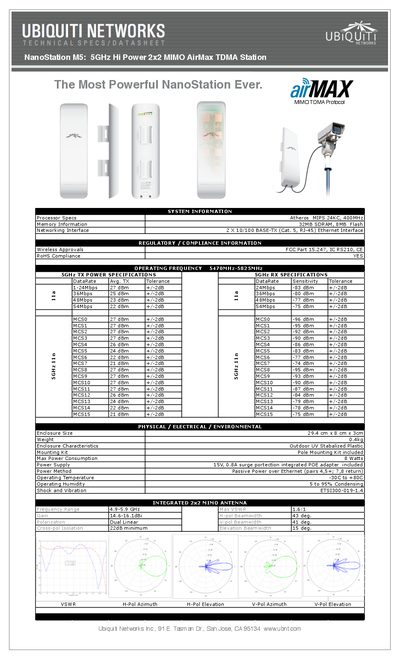

NanoStation M5 is a 5GHz Hi Power 2x2 MIMO AirMax TDMA Station MIMO TDMA Protocol by Ubiquiti Networks Inc., the maximum transmit power is 27 dBm.
The NanoStation M5 is a high‑power 5 GHz outdoor wireless station featuring a built‑in 2×2 MIMO antenna and AirMax TDMA protocol for long‑range point‑to‑point links. It is designed for outdoor deployment with UV‑stabilized plastic housing and optional pole‑mount kit.
Key specifications include a 400 MHz Atheros MIPS 24KC processor, 32 MB SDRAM, 8 MB flash, dual 10/100 BASE‑TX Ethernet ports, operating frequency 5470‑5825 MHz, TX power up to 27 dBm, antenna gain 14.6‑16.1 dBi, and power over Ethernet (15 V, 0.8 A) with a maximum consumption of 8 W.
| Processor | Atheros MIPS 24KC, 400 MHz |
|---|---|
| Memory | 32 MB SDRAM, 8 MB Flash |
| Ethernet Interface | 2 × 10/100 BASE‑TX (Cat.5, RJ‑45) |
| Operating Frequency | 5470 MHz‑5825 MHz |
| Antenna Gain | 14.6‑16.1 dBi |
| Power Consumption | 8 W |
| Weight | 0.4 kg |
| Operating Temperature | -30 °C to +80 °C |
| Power Method | Passive Power over Ethernet (PoE) |
It operates from 5470 MHz to 5825 MHz.
It uses passive Power over Ethernet with a 15 V, 0.8 A integrated POE adapter.
The integrated 2×2 MIMO antenna provides 14.6‑16.1 dBi gain.
