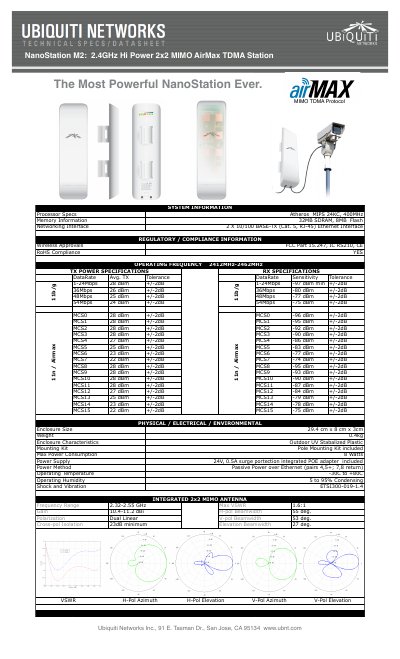

NanoStation M2 is a 2.4GHz high power 2x2 MIMO AirMax TDMA station that utilizes MIMO TDMA protocol. The product features high data rates, sensitivity, dual linear V-pol polarization, and integrated 2x2 MIMO antenna.
The NanoStation M2 is a high‑power 2.4 GHz outdoor wireless station featuring a built‑in 2×2 MIMO antenna and Ubiquiti's AirMax TDMA protocol. It is designed for long‑range point‑to‑point and point‑to‑multipoint links and includes a passive Power‑over‑Ethernet (PoE) power method.
Key specifications include a frequency range of 2.32‑2.55 GHz, maximum gain of 10.4‑11.2 dBi, max VSWR 1.6:1, operating temperature from –30 °C to +80 °C, enclosure size 29.4 cm × 8 cm × 3 cm, weight 0.4 kg, and a 24 V/0.5 A surge‑protected PoE supply. The device provides two 10/100 BASE‑TX Ethernet ports and is powered by a 400 MHz Atheros MIPS 24KC processor with 32 MB SDRAM and 8 MB flash memory.
| Frequency Range | 2.32‑2.55 GHz |
|---|---|
| Maximum VSWR | 1.6:1 |
| Antenna Gain | 10.4‑11.2 dBi |
| Maximum Power Consumption | 8 W |
| Operating Temperature | -30 °C to +80 °C |
| Enclosure Size | 29.4 cm × 8 cm × 3 cm |
| Weight | 0.4 kg |
| Power Method | Passive Power over Ethernet (pairs 4,5+; 7,8 return) |
| Processor | Atheros MIPS 24KC, 400 MHz |
| Memory | 32 MB SDRAM, 8 MB Flash |
The NanoStation M2 operates from 2.32 GHz to 2.55 GHz.
It uses passive Power over Ethernet (PoE) on pairs 4,5+ and 7,8 return.
The enclosure measures 29.4 cm × 8 cm × 3 cm and weighs 0.4 kg.
The unit consumes up to 8 watts of power.
