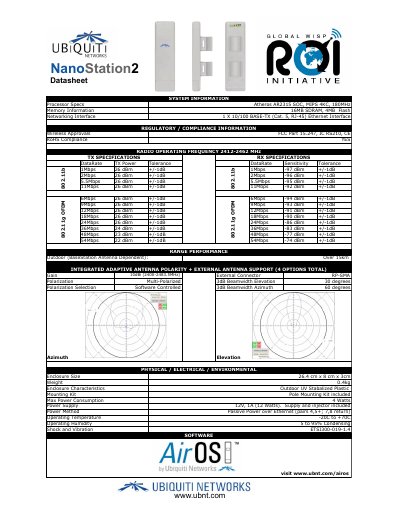

NanoStation2 datasheet, including data rate, transmit power, receive sensitivity and other technical parameters
The NanoStation2 is an outdoor wireless CPE from Ubiquiti that uses an integrated adaptive dual‑polarity antenna with 10 dBi gain. It supports 802.11b/g operation in the 2.4 GHz band with selectable channel widths and provides up to 54 Mbps data rates.
Key specifications include TX power of 26 dBm (±1 dB) at 1 Mbps, a 10 dBi antenna gain, PoE power (12 V / 1 A, 12 W), enclosure size 26.4 cm × 8 cm × 3 cm, weight 0.4 kg, operating temperature –20 °C to +70 °C, and FCC/IC/CE approvals. The unit offers multiple mounting options (pole, wall, window) and includes a PoE injector and accessories.
| TX Power (1 Mbps) | 26 dBm ±1 dB |
|---|---|
| RX Sensitivity (1 Mbps) | -97 dBm ±1 dB |
| Antenna Gain | 10 dBi (2400‑2483.5 MHz) |
| Processor | Atheros AR2315 SOC, MIPS 4KC, 180 MHz |
| Memory | 16 MB SDRAM, 4 MB Flash |
| Enclosure Size | 26.4 cm × 8 cm × 3 cm |
| Weight | 0.4 kg |
| Power Supply | 12 V, 1 A (12 W) PoE |
| Operating Temperature | -20 °C to +70 °C |
| Radio Frequency | 2412‑2462 MHz (802.11b/g) |
The TX power is 26 dBm with a tolerance of ±1 dB.
Standard pole mount is included, with optional wall‑mount and window‑mount accessories.
