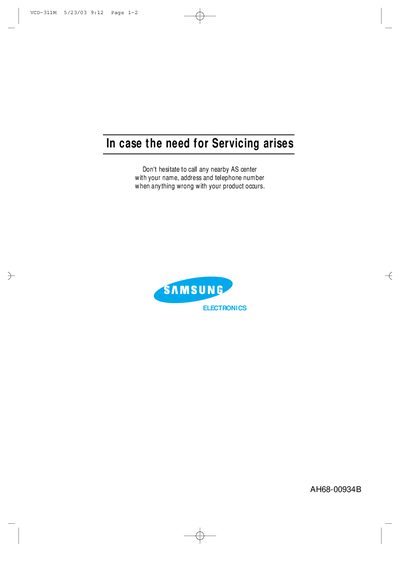

This is a user manual for VCD-311M, which introduces the basic functions and usage methods of VCD-311M.
This manual covers safety precautions, including warnings about electric shock, laser hazards, and moisture, and instructs users to refer servicing to qualified personnel. It details the front and rear panel controls, remote functions, and connection options for video and audio outputs.
The specifications section lists power consumption, dimensions, weight, operating temperature, audio/video output levels, supported disc formats and media handling, as well as cleaning and maintenance recommendations for the player and discs.
| Power consumption | 6.5 W |
|---|---|
| Weight | 28 kg |
| Dimensions (W x D x H) | 420 x 284 x 111 mm |
| Operating temperature | +5°C to +35°C |
| Video output level | 1 Vp‑p (75 Ω load) |
| Audio output level (2 V rms) | 2 V rms (1 kHz, 0 dB) |
| Audio output level (0.5 V rms) | 0.5 V rms (1 kHz, 0 dB) |
| Audio frequency response | 20 Hz – 20 kHz |
| Signal‑to‑noise ratio | 85 dB |
| Total harmonic distortion | 0.496 % at 1 kHz, 0 dB |
| Supported disc formats | Video‑CD, CD, CD‑R, CD‑RW, MP3 (MPEG‑1 Layer 3) |
| File extension for MP3 | .MP3 |
| Sampling frequency for MP3 | 44.1 kHz |
