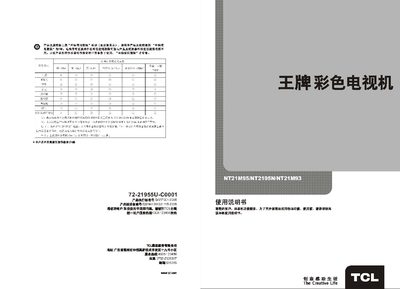

This manual covers the TCL NT21M95 (also sold as NT2195N and NT21M93) flat‑panel TV. It includes safety notices, environmental disposal periods, and warranty information, as well as a description of the TV’s main features such as digital super‑chip, smart single‑key interface, and built‑in games.
The guide explains basic operations like power on/off, automatic and manual channel searching, image and sound adjustments, advanced functions such as single‑listen mode and game mode, and a simple fault‑diagnosis table. It also provides remote‑control usage, battery replacement, and connection diagrams for antenna and AV inputs. This manual is written in Chinese.
| Screen diagonal | 51 cm |
|---|---|
| Power consumption | 60 W |
| Rated voltage | 220 V ~ 50 Hz |
| Dimensions (W×D×H) | 589×503×459 mm |
| Weight | ≈21.5 kg |
| Audio output power | 2 W + 2 W (left + right) |
| Antenna input | 75 Ω (VHF/UHF) |
| AV input video level | 1.0 Vp‑p |
| AV input audio level | 0.5 V rms |
Press the menu/search key on the TV for three seconds to enter automatic search mode, or use the remote’s “数字选台” key to start auto‑search.
Open the battery cover on the remote, insert two 7‑type 1.5 V batteries with the correct polarity, and close the cover.
