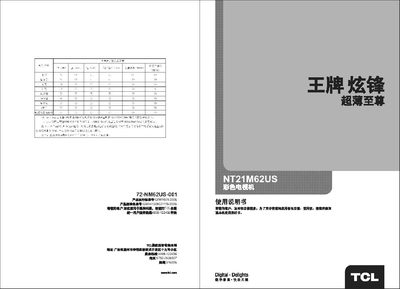

This manual guides users through the installation, basic operation, and maintenance of the TCL NT21M62US color television. It includes safety notices, wiring diagrams, and detailed instructions for adjusting picture and sound settings.
Key sections cover base installation, connection diagrams, feature descriptions, technical specifications, and a troubleshooting guide for common issues such as no picture or audio problems. This manual is written in Chinese.
| Screen diagonal size | 51 cm |
|---|---|
| Power supply voltage | 220 V, 50 Hz |
| Audio output power | 2.5 W + 2.5 W |
| Dimensions (W×H×D) | 660 mm × 600 mm × 400 mm |
Place the TV on a flat surface, align the base holes with the TV’s mounting holes, rotate the base 90° until you hear a click, then lift the TV and set it onto the base as shown in the diagram.
Press the power switch on the main unit to turn the TV on. To turn it off, press the standby button or the power switch; the standby indicator light will show the TV is in standby mode.
