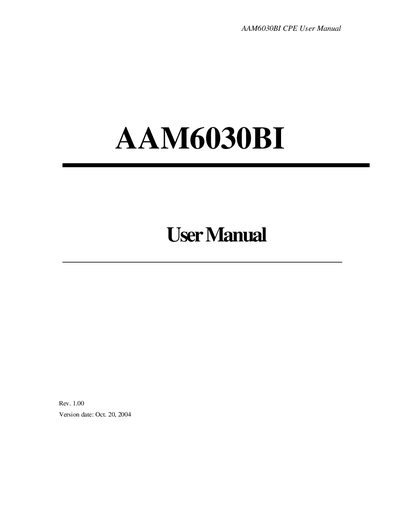

AAM6030BI CPE User Manual is a ADSL modem user manual, which mainly introduces the AAM6030BI modem's features, appearance, connection methods, configuration methods and other contents
This user manual guides you through installing the AAM6030BI Customer Premises Equipment (CPE), connecting it to an ADSL line, power source, and local network, and configuring basic network settings via the web interface. It also covers advanced features such as DHCP, VLAN, NAT, firewall, and VPN pass‑through.
Additional sections provide detailed LED indicators, troubleshooting steps for common DSL link problems, and explanations of networking concepts like NAT, DMZ, and firewall protection, helping both novice and experienced users maintain reliable Internet connectivity.
| Ethernet ports | 4 Port 10/100 Ethernet |
|---|---|
| VPN support | Single‑Session IPSec and PPTP Pass‑Through |
| PVC support | Up to 8 Permanent Virtual Circuits (PVC) |
| PPPoE sessions | Up to 8 PPPoE sessions |
| Switch type | Layer‑2 Ethernet switch (not a hub) |
The Power LED is green and on when the unit is powered on.
A blinking DSL Link LED means the DSL line is training and has not yet established a valid connection.
Press and hold the reset button for about 5‑10 seconds, then release; the device will reboot after about 30 seconds.
A DMZ isolates a single local computer so it appears directly on the Internet, useful for running servers that need inbound connections.
