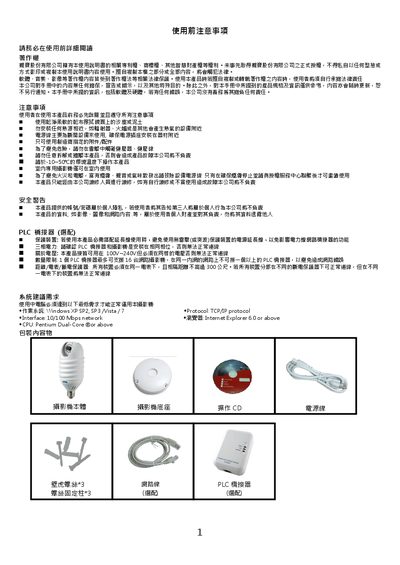

Shixi Camcorder User Manual

This document is the Soundbo camera instruction manual, which introduces the camera's usage methods, precautions and safety warnings

Brand: Sampo
Category: Digital cameras
Document type: User Manual
Language: Chinese
Pages: 8
File format: PDF
File size: 1.1 MB
Published: 20 March, 2012
Updated: 30 September, 2023
MD5 checksum: 27BF435E89A5F4938110E2EA7661706E
PDF: Shixi Camcorder User Manual PDF

About this manual

This manual provides safety precautions, hardware installation steps, and wiring guidelines for the Shixi camcorder. It explains how to connect the camera to power, mount it, and use the PLC powerline Ethernet bridge for network connectivity.

The guide also details software installation for PC and mobile devices, system requirements, and troubleshooting procedures, including FAQ sections for common issues such as power, network, and image quality. This manual is written in Chinese.

What's inside

Precautions Before Use
Package Contents
Quick Hardware Installation
Powerline Ethernet Bridge (PLC) Connection
Software Installation
System Requirements
Troubleshooting
FAQ

Specifications

Operating Voltage	100 V–240 V
Network Interface	10/100 Mbps Ethernet
Supported OS	Windows XP SP2/SP3, Vista, 7
Minimum CPU	Pentium Dual‑Core or above
Maximum Cameras per PLC Bridge	16

Frequently asked questions

What voltage range can the camcorder operate on?

The camcorder can be used with an input voltage of 100 V to 240 V.

How many cameras can be connected to a single PLC powerline bridge?

One PLC bridge can support up to 16 network cameras.

What network speed does the PLC bridge support?

The PLC bridge provides up to 200 Mbps Ethernet throughput.
