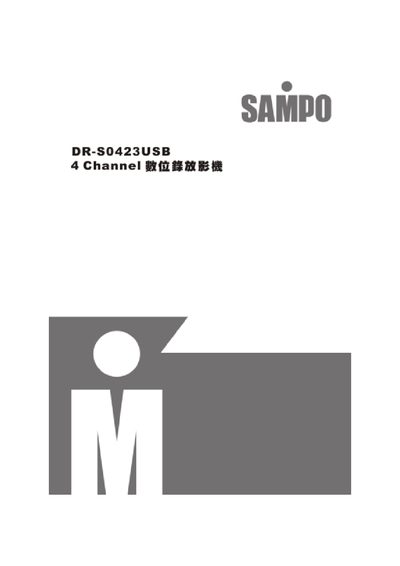

Sampo DR‑S0423USB 4 Channel Digital Recorder User Manual

This user manual introduces the installation method, operation instructions and precautions of this product. Please read this manual carefully before using this product

Brand: Sampo
Document type: User Manual
Language: Chinese
Pages: 27
File format: PDF
File size: 449 KB
Published: 20 March, 2012
Updated: 01 October, 2023
MD5 checksum: B1E9AE56671AE4012F5642C8C963DE10
PDF: Sampo DR‑S0423USB 4 Channel Digital Recorder User Manual PDF

About this manual

This manual covers the installation of the DR‑S0423USB digital recorder, including video signal cabling, power connection, and sensor wiring. It details the front‑panel buttons, menu navigation, and how to set up video input from up to four cameras and video output to a monitor via S‑Video or BNC connectors.

Additional sections explain alarm sensor and external buzzer installation, USB 2.0 flash‑drive backup procedures, and the supported flash‑drive brands and capacities. Appendices provide software usage instructions and a list of compatible USB drives. This manual is written in Chinese.

What's inside

Installation Precautions
Front Panel Buttons
System Installation – Video Output
System Installation – Video Input
Alarm Sensor Installation
Menu Operation
USB Backup Software
Supported USB Flash Drives

Specifications

Channels	4
USB Interface	USB 2.0 flash‑drive input
Power Input	DC‑in 12 V
Video Output Connectors	S‑Video and BNC
Default Password for Stopping Recording	111111
Alarm Sensor Inputs	4

Frequently asked questions

What type of cable should be used for video signal installation?

Use coaxial cable, preferably CATV, and keep the cable run as short as possible.

What is the default password required to stop recording?

The default password is 111111.

How many alarm sensor inputs can be connected to the recorder?

The recorder supports four alarm sensor inputs.
