This document is the safety precautions for DR-S1622 16 Channel Digital Recorder and DR-S0930 9 Channel Digital Recorder. The main contents are about the installation, use, cleaning and maintenance of the equipment. They include prohibiting the equipment from being placed outdoors in the rain, heavy humidity or dust, prohibiting the equipment from being exposed to water or humidity, prohibiting the equipment from being placed in a rainy or humid environment to avoid fire or electrical short circuit.

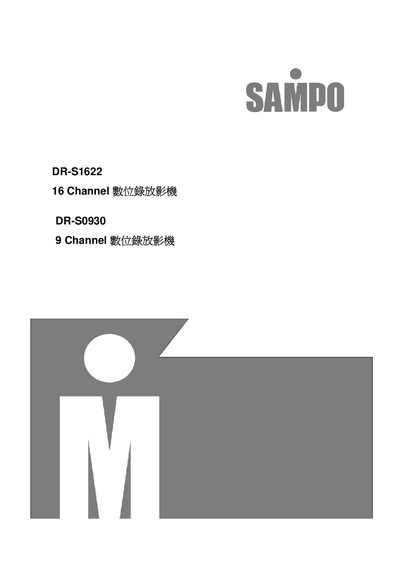

This manual covers the complete setup of the Sampo DR‑S1622, a 16‑channel digital video recorder. It includes hardware installation, wiring diagrams, network configuration, and remote‑control programming.
Detailed sections describe power requirements, I/O connections, RS‑232/RS‑485 interfaces, Ethernet networking, and troubleshooting tips, allowing users to configure and maintain the recorder efficiently. This manual is written in Chinese.
| Channels | 16 |
|---|---|
| Power Supply | 100~240 V, 60 Hz |
| Dimensions (W × H × D) | 430 mm × 88 mm × 300 mm |
| Video Fields per Second | 270 fields/s (NTSC) |
It works with an AC supply of 100 V to 240 V at 60 Hz.
The recorder provides 16 video input channels.
It includes an RJ‑45 Ethernet port for TCP/IP networking.
