This machine is a high-performance single-chip digital storage system with a 32-bit RISC processor, which can simultaneously process recording, real-time monitoring, playback, CD burning, USB backup and directly connect to the network to perform remote monitoring. The user-friendly interface can be operated through the screen menu, front panel control buttons and multi-function wireless remote controller. USB devices and built-in CD burners are convenient for users to download recording images and update firmware.

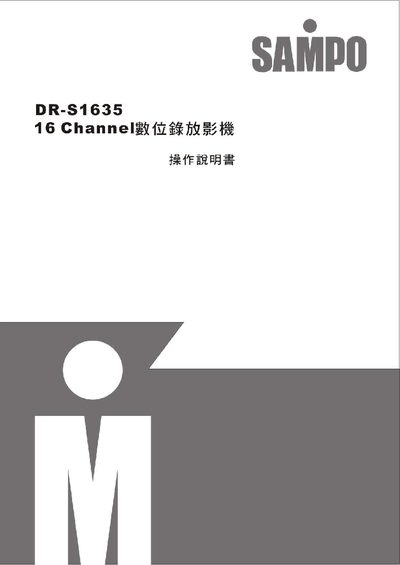

This manual provides step‑by‑step instructions for setting up the DR‑S1635 digital recorder, including hardware installation, power connection, and safety precautions. It describes the front‑panel controls, remote controller layout, and the functions of each button and indicator.
The guide also covers system configuration such as video input setup, recording schedules, alarm settings, backup options, and remote network access via a web browser or the NetworkViewer application. Detailed specifications of the recorder’s video inputs, storage capacity, and performance are listed in the appendix. This manual is written in Chinese.
| Video inputs | 16 BNC channels |
|---|---|
| Recording speed (PAL) | 50 fps |
| Recording resolution | 720 × 240 (PAL) / 320 × 240 (CIF) |
| Maximum storage capacity | Up to 4 TB (2 internal + 2 external SATA‑II RAID) |
| CPU | 32‑bit RISC processor, 208 MHz |
| Power consumption (max) | 135 W |
The recorder can hold two internal hard drives (one hot‑swap) and up to two external SATA‑II RAID units for a total of up to 4 TB.
Backup can be performed to a USB 2.0 flash drive or an external CD‑RW drive.
Remote access is possible via an Internet Explorer web browser or the NetworkViewer application.
