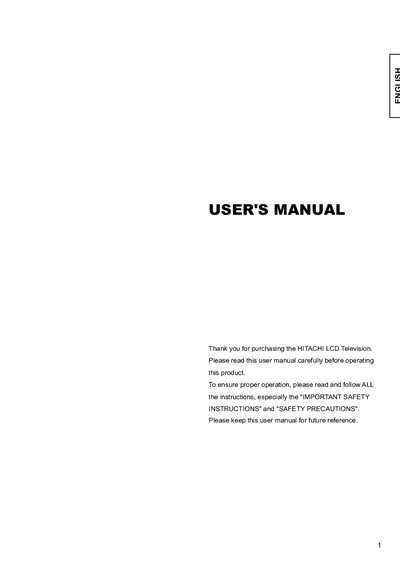

This manual introduces the use of HITACHI LCD television, including safety instructions, product functions, basic operations, menu operations, function introduction, troubleshooting and other contents
This manual covers important safety instructions, proper installation, and handling of the Hitachi 32LD9000TA2 LCD television. It explains how to connect power, video sources, and accessories, and provides detailed guidance on cleaning, maintenance, and anti‑tumble measures.
The document also describes basic operation such as power on/off, volume control, input switching, menu navigation, audio settings, timer functions, and troubleshooting steps. Technical specifications for video signals and connector pinouts are listed at the end.
| Supported VGA resolution | 640x480 @ 59.94 Hz |
|---|---|
| Supported 720P/60 resolution | 1280x720 @ 60 Hz |
| Supported 1080i/60 resolution | 1920x1080 @ 59.94 Hz |
| HDMI connector pin 1 | TMDS Data2+ |
Check the input signal connections, ensure the correct input mode is selected, and refer to the troubleshooting section for further checks.
No. The manual advises not to place the unit on a carpet or bedclothes to avoid overheating and fire risk.
Sit 3–7 times the vertical length of the panel away from the screen for comfortable viewing.
