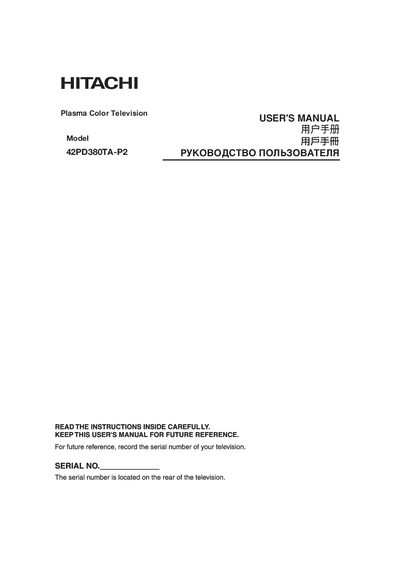

This manual introduces the basic operation and maintenance methods of 42PD380TA-P2 TV
This manual begins with safety guidelines and warnings that must be read before installing or operating the plasma TV. It explains proper handling, power‑connection requirements, and precautions for cleaning, moving, and servicing the unit.
Subsequent sections cover installation procedures, remote‑control functions, picture and audio settings, HDMI and other input connections, and a troubleshooting guide with common fault symptoms and their remedies. The final part lists the technical specifications of the television. This manual is written in Chinese.
| Screen Size | 42 inches (1056 mm diagonal) |
|---|---|
| Resolution | 852 × 480 pixels |
| Input Voltage | AC 100‑240 V, 50‑60 Hz |
| HDMI Compatibility | HDMI (type A connector) |
| HDMI Audio | PCM (stereo) |
| Output Power | 10 W × 2 (max) |
| Operating Temperature | –20 °C to 40 °C |
| Storage Temperature | –20 °C to 60 °C |
| Dimensions (W×H×D) | 121 mm × 6.8 mm × 11.5 mm |
| Weight | 34 kg (without accessories) |
The TV operates on an AC supply of 100‑240 V at 50‑60 Hz.
Connect the HDMI cable to the HDMI (type A) port on the TV; the HDMI input is compatible with HDCP.
