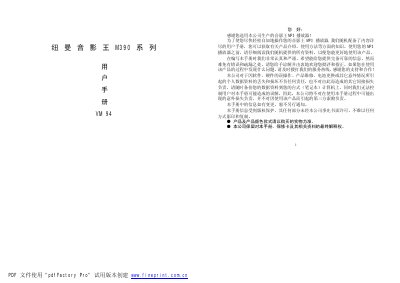

Newman M390 MP3 player user manual, supports MP3, WMA and other music formats, color screen, unique charm!
This manual introduces the Newman M390 MP3 player, covering its hardware layout, button functions, and basic operation procedures such as power management, playback control, and file handling. Detailed instructions are given for battery charging, FM radio use, recording modes, and special features like the "异度空间" encryption function.
Additional sections guide users through firmware upgrades, computer communication, troubleshooting common issues, and provide a full list of technical specifications. The document is intended for end‑users to safely and effectively operate the device. This manual is written in Chinese.
| Dimensions | 57 mm × 31 mm × 13 mm |
|---|---|
| Supported audio formats | MP3, WMA, MTV, AMV |
| Display | 96 × 64 dot matrix color screen |
| FM frequency range | 76 MHz–90 MHz / 87 MHz–108 MHz |
| Internal memory options | 128 MB, 256 MB, 512 MB, 1 GB |
| Recording formats | WAV (32 kbps) and ACT (8 kbps) |
| Headphone output power | 5 mW (L) + 5 mW (R) |
| Operating temperature | 0 °C to 40 °C |
The player’s internal software reserves part of the flash memory and uses a different base for capacity calculation, so the OS reports a smaller size.
Turn the power switch to OFF, wait about two minutes, then turn it back to ON to restart the device.
