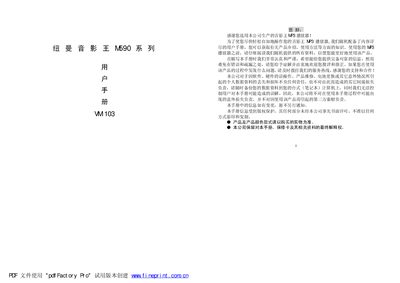

M590 series MP3 player user manual for Newman sound king, supports MP3, WMA and other music formats, color screen, charming!
This manual introduces the Newman M590 MP3 player, covering its appearance, button layout, and supported media formats such as MP3, WMA, AMV, JPG images, and TXT e‑books. Detailed instructions guide users through basic operation, playback controls, recording modes, FM radio, and file management.
Additional sections explain battery management, USB connection to a computer, firmware upgrade, disk encryption, and a full technical specification table. Safety precautions, FAQ, and troubleshooting tips help users maintain reliable performance. This manual is written in Chinese.
| Dimensions | 67 mm × 42 mm × 15 mm |
|---|---|
| Display | 1.5‑inch color LCD, 128 × 128 pixels |
| Supported Music Formats | MP3, WMA, AMV |
| Internal Memory | 256 MB / 512 MB / 1 GB (as shipped) |
| Battery | 600 mAh built‑in Li‑ion |
| Maximum Output Power | 5 mW (L) + 5 mW (R) |
| Frequency Response | 20 Hz – 20 kHz |
| Signal‑to‑Noise Ratio | ≥ 86 dB |
| Operating Temperature | 0 °C – 40 °C |
Charge the player at least once a month to prevent the lithium battery from being over‑discharged.
Connect the player via USB; the screen will show a connection icon and the computer will mount it as a removable drive.
Yes, use the “Sound Converter Tool” provided on the driver CD to convert ACT files to WAV.
