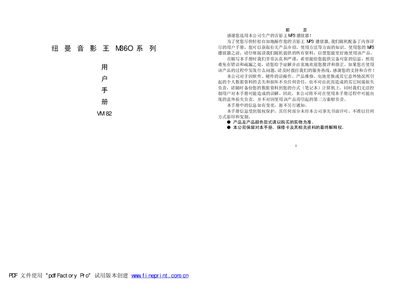

This document is about the user manual of Newman M36O series MP3 player. The manual provides detailed information about the product features and instructions for using the MP3 player. It also includes reminders for users, information about the product's functions, and its design features.
This manual provides detailed instructions for using the Newman M36O series MP3 player, including setup, basic controls, and advanced functions such as recording, e‑book reading, and secure disk mode. It also contains safety notices, warranty information, and troubleshooting tips.
The document is organized into sections on battery management, playback controls, sound effects, loop and repeat modes, file handling, firmware upgrades, and connection to a computer via USB. Each feature is described with step‑by‑step procedures and illustrated diagrams. This manual is written in Chinese.
| Dimensions | 65mm × 40mm × 10mm |
|---|---|
| Supported Audio Formats | MP3, WMA, MTV |
| Audio Bitrate | MP3 32‑320 Kbps, WMA 32‑256 Kbps |
| Display | 96×64 dot matrix color screen |
| Internal Storage Options | 128 MB, 256 MB, 512 MB, 1 GB |
| Sampling Rate | 8 kHz |
| Recording Formats | WAV (32 kbps) and ACT (8 kbps) |
| Maximum Recording Time | 35 hours (ACT, 128 MB flash) |
| Headphone Output Power | 10 mW (L) + 10 mW (R) |
| Frequency Response | 20 Hz – 20 kHz |
| Signal‑to‑Noise Ratio | ≥86 dB |
| Supported Languages | Chinese, English, French, etc. |
| Battery Type | Built‑in lithium‑polymer, ~8 hours playback |
| Operating Temperature | -5 °C to 40 °C |
The player’s internal software reserves a small portion of the flash memory and uses a different base for the calculation, so the OS shows a slightly lower value.
Turn the power switch to OFF, wait about two minutes, then turn it back to ON to restart the device.
