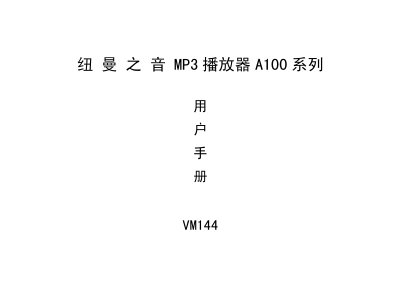

Newman MP3 player A100 series user manual, introduces the basic operation, precautions and other content of the player
This manual introduces the Newman A100 series MP3 player, covering product overview, safety precautions, button layout, and basic operation such as power on/off, playback control, and volume adjustment.
It also explains data storage via USB, battery replacement, driver installation for Windows, firmware upgrade, formatting, and a troubleshooting guide with common issues and solutions. This manual is written in Chinese.
| Dimensions | 80×29×23 mm |
|---|---|
| Supported music formats | MP3, WMA |
| Bitrate range | 32 Kbps–320 Kbps |
| WMA bitrate range | 32 Kbps–320 Kbps |
| Frequency response | 20 Hz–20 kHz |
| Signal‑to‑noise ratio | ≥86 dB |
| Headphone output power | L 10 mW, R 10 mW |
| Display type | Digital segment LCD |
| Battery | One AAA cell |
| Interface | USB 2.0 |
| File system | FAT |
Open the battery cover, insert a new AAA battery with correct polarity, and close the cover. If the player does not respond, wait a few minutes before reinserting the battery.
Remove the battery, wait about one minute, reinsert the battery, and power the player on again. This usually restores normal operation.
