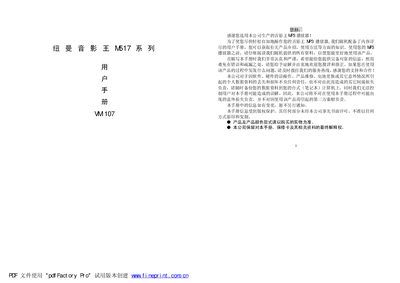

Newman M517 series MP3 player user manual, support MP3, WMA, AMV, MTV formats, color screen, unique charm!
This manual provides detailed instructions for using the Newman M147 series MP3 player, including basic operation, battery management, playback controls, recording functions, and file handling. It also contains safety warnings and warranty information.
The guide includes a technical specifications section and a troubleshooting FAQ to help users resolve common issues such as low volume, short battery life, and startup problems after long periods of inactivity. This manual is written in Chinese.
| Screen size | 1.5 inch color LCD (128×128 dots) |
|---|---|
| Audio bitrate range | 32 kbps – 320 kbps |
| Supported image format | JPG |
| Supported e‑book format | TXT |
| Recording formats | WAV, ACT |
| Maximum recording time | 35 hours (ACT, 128 MB) |
| Maximum output power | 5 mW |
| Signal‑to‑noise ratio | >86 dB |
When the internal lithium battery is deeply discharged, the protection circuit prevents power‑on. Connecting the player to a charger or USB port reactivates the battery.
