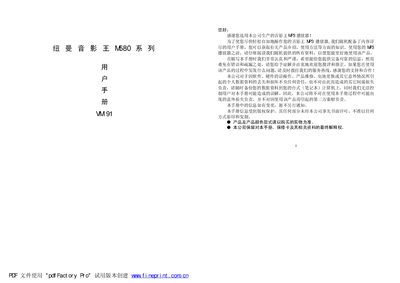

The user manual of the Newman Sound King M580 series introduces the function, usage method and precautions of the product.
This manual provides detailed instructions for using the Newman M580 series MP3 player, including basic operation, playback controls, recording functions, and system settings. It also contains safety warnings, battery management tips, and troubleshooting advice.
The document includes step‑by‑step procedures for connecting the player to a computer, managing files, using the “异度空间” encryption feature, and upgrading firmware. Technical specifications are listed at the end of the guide. This manual is written in Chinese.
| Dimensions | 68mm×41mm×15mm |
|---|---|
| Display | 128×128 dot matrix true‑color LCD |
| Audio formats | MP3, WMA, MTV, AMV |
| MP3 bitrate | 32Kbps–320Kbps |
| WMA bitrate | 22Kbps–320Kbps |
| Image format | JPEG |
| Internal memory | 128M, 256M, 512M or 1G (depending on unit) |
| Recording formats | WAV, ACT |
| Recording time | 35 hours (ACT, 128 M Flash) |
| Headphone output power | 10 mW (L) + 10 mW (R) |
| Frequency response | 20 Hz–20 kHz |
| Signal‑to‑noise ratio | ≥86 dB |
| Battery | Built‑in lithium, operating temperature 0–40 °C |
The computer and the MP3 player use different counting methods and the player reserves a portion of the flash for internal software, so the reported size is smaller.
Format the player with a management tool to defragment the internal flash, which restores normal speed.
