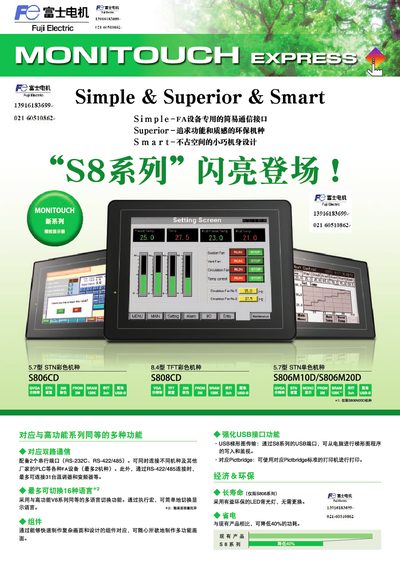

The S8 series from Fuji Electric includes compact 5.7‑inch and 8.4‑inch touch screen displays designed for FA equipment. It offers LED backlighting, multi‑language support, and a range of communication ports for easy integration.
The manual lists detailed technical specifications such as resolution, power requirements, environmental limits, and mechanical durability, as well as the available external interfaces like RS‑232C, RS‑422/485, USB and SRAM storage. This manual is written in Chinese.
| Screen size | 5.7" and 8.4" |
|---|---|
| Resolution | 640×480 (8.4") / 320×240 (5.7") |
| Mechanical life | >1,000,000 cycles |
| COM1 interface | RS‑422/485, 7‑8 bit data, 1‑2 stop bits |
| COM2 interface | RS‑232C, 7‑8 bit data, 1‑2 stop bits |
| Display memory | 2.25 MB |
| Backup SRAM | 128 KB |
| Operating temperature | 0 °C – 50 °C |
| Storage temperature | -10 °C – 86 °C |
| Relative humidity | ≤85 % RH |
| Dimensions (mm) | 233.0 × 178.0 × 59.8 |
The S8 series is offered in 5.7‑inch and 8.4‑inch models.
It provides two serial ports (RS‑232C and RS‑422/485) and a USB port for program transfer.
The device can operate from 0 °C up to 50 °C.
