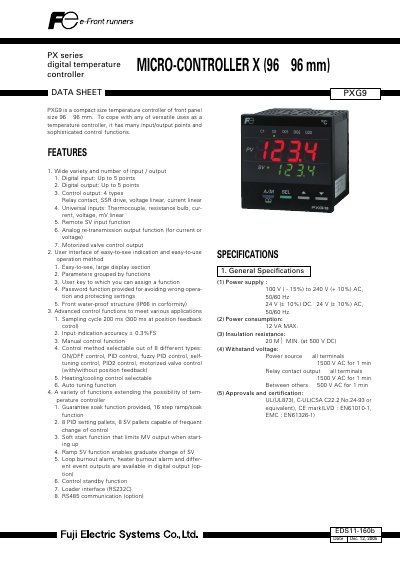

PXG9 is a compact size temperature controller of front panel size 96 × 96 mm. To cope with any of versatile uses as a temperature controller, it has many input/output points and sophisticated control functions.
The PXG9 is a compact 96 × 96 mm temperature controller designed for versatile applications. It offers a wide variety of inputs and outputs, including up to five digital inputs, five digital outputs, and four types of control outputs (relay contact, SSR drive, voltage linear, current linear). Advanced features such as auto‑tuning, fuzzy PID, motorized valve control, and a password function are provided.
Technical specifications include a power supply range of 100‑240 V AC or 24 V AC/DC, 12 VA maximum power consumption, IP66 front protection, and RS‑485 Modbus‑RTU communication supporting up to 32 units over 500 m. The unit operates from –10 °C to 50 °C and is built to industrial standards with UL and CE certifications.
| Front panel size | 96 × 96 × 81.5 mm |
|---|---|
| Power supply voltage | 100‑240 V AC, 24 V AC/DC |
| Power consumption | 12 VA MAX |
| Insulation resistance | 20 MΩ MIN |
| Withstand voltage | 1500 V AC for 1 min |
| Digital inputs | Up to 5 points |
| Digital outputs | Up to 5 points |
| Control output types | Relay contact, SSR drive, voltage linear, current linear |
| Communication interface | RS‑485 Modbus‑RTU |
| Front panel IP rating | IP66 |
| Operating temperature range | -10 °C to 50 °C |
The controller provides up to five digital input points.
It uses Modbus‑RTU over an RS‑485 interface.
The front panel is rated IP66 for water‑proof protection.
The unit consumes up to 12 VA.
