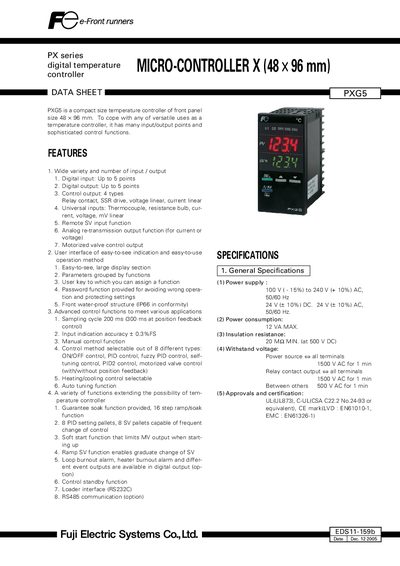

PXG5 is a compact size temperature controller of front panel size 48 × 96 mm. It has many input/output points and sophisticated control functions to cope with versatile uses as a temperature controller.
The PXG5 is a compact 48 × 96 mm front‑panel temperature controller with a wide variety of input and output points and advanced control functions such as PID, fuzzy PID, and motorized valve control. It offers a large LED display, password protection, and an IP66 front‑water‑proof structure.
The document details the controller's general specifications, input and output sections, control and alarm functions, communication options (RS‑485 Modbus), environmental limits, mechanical dimensions, and the contents of the standard delivery package.
| Power supply | 100 V (-15%) to 240 V (+10%) AC, 50/60 Hz; 24 V (+10%) DC or AC |
|---|---|
| Power consumption | 12 VA MAX |
| Withstand voltage (terminals) | 1500 V AC for 1 min |
| Digital inputs | Up to 5 points |
| Control outputs | 4 types (Relay, SSR, voltage linear, current linear) |
| RS‑485 communication rate | 9600 bps, 19200 bps |
| Operating temperature range | -10 °C to 50 °C |
| Dimensions | 48 mm × 96 mm × 80 mm |
| Mass | About 300 g |
The controller consumes up to 12 VA maximum.
The PXG5 can accept up to five digital input points.
The unit can be stored between –20 °C and 60 °C.
