PXH9 is a 96 × 96 mm, high-performance digital controller developed and produced by Yokogawa Electric Co., Ltd., which ensures high-speed and high-accuracy control. With its abundant and flexible input/output points and powerful math function, it can be used for a wide range of applications, including not only temperature control but also pro- cess control of pressure, flow rate, etc.
The PXH9 is a 96 × 96 mm high‑performance digital controller designed for process control such as temperature, pressure and flow. It offers high‑speed control with a 50 ms sampling cycle, ±0.1 % FS input accuracy and a variety of math functions.

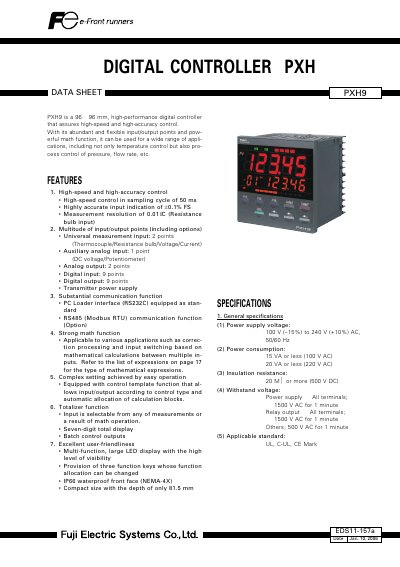

The controller provides abundant I/O (thermocouple, resistance‑bulb, voltage, current, digital and analog), optional RS‑485 Modbus‑RTU, IP66 front‑face protection and a compact panel‑mount design (96 × 96 × 81.5 mm). Detailed specifications, alarm functions and communication settings are listed in the datasheet.
| Power supply voltage | 100 V (‑15 %) to 240 V (+10 %) AC, 50/60 Hz |
|---|---|
| Power consumption | 15 VA (100 V AC) or 20 VA (220 V AC) |
| Input sampling cycle | 50 ms |
| Communication speed (RS‑232/RS‑485) | 9600, 19200, 38400 bps |
| IP protection rating (front face) | IP66 (NEMA‑4X equivalent) |
| Dimensions (W × H × D) | 96 mm × 96 mm × 81.5 mm |
The controller samples inputs every 50 ms.
A standard PC Loader RS‑232C (Modbus‑RTU) interface is included, and an optional RS‑485 Modbus‑RTU interface is available.
The front face is rated IP66, equivalent to NEMA‑4X.
It consumes 15 VA or less when powered from 100 V AC.
