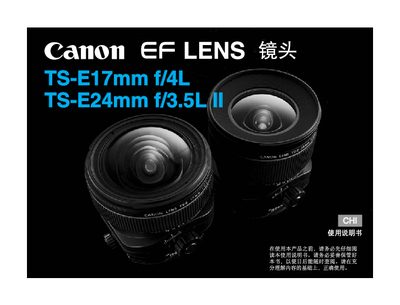

TS-E17mm f/4L and TS-E24mm f/3.5L II are Canon's Tilt-Shift lenses designed specifically for EOS cameras. The tilt-shift mechanism allows photographers to control depth of field and shooting range, thereby correcting image distortion and making it possible to capture high-quality photographs that are not possible with traditional lenses.
The document explains the features of the TS‑E series tilt‑shift lenses, including tilt and shift ranges, non‑spherical and UD glass elements, and the effect of the SWC coating. It also lists safety precautions for handling the lenses and protecting against harmful light.
Installation and removal procedures are described, with details on the required screws, alignment steps, and recommended camera bodies (EOS series). A specification table gives dimensions, filter size, and weight for both lenses. This manual is written in Chinese.
| Filter diameter | 82 mm |
|---|---|
| Maximum diameter (TS‑E17mm) | 88.9 × 106.7 mm |
| Weight (TS‑E17mm) | 820 g |
The lenses are intended for EOS series cameras with 100 % viewfinder coverage, such as EOS‑1, EOS‑1D, EOS‑1Ds, and EOS 5D.
