LC-22D1H,LC-26D1H,LC-32D1H are three different size LCD TVs, support NTSC, PAL, SECAM formats, support HDMI, VGA, USB and other interfaces

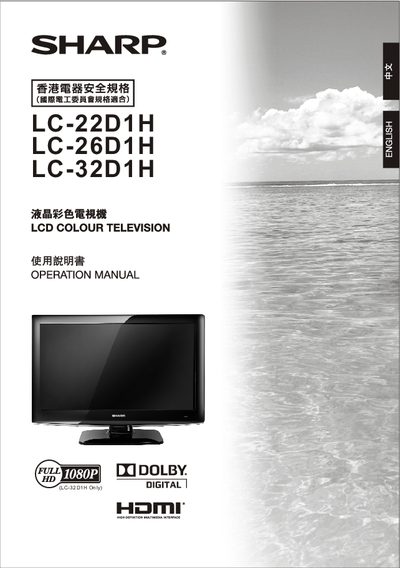

This manual provides the essential information for setting up and using Sharp LC‑22D1H, LC‑26D1H and LC‑32D1H LCD televisions. It includes safety warnings, installation steps, remote‑control functions, operating instructions, and troubleshooting tips.
The document also contains dimensional drawings, detailed technical specifications, and a list of accessories. Users can refer to the specifications section for power requirements, video/audio formats, and standby power consumption, while the troubleshooting chapter helps resolve common issues.
| Power supply voltage | 110‑240 V ~ 50/60 Hz |
|---|---|
| Standby power consumption (LC‑22D1H) | 54 W (0.6 W) |
| Standby power consumption (LC‑26D1H) | 71 W (0.6 W) |
| Standby power consumption (LC‑32D1H) | 122 W (0.6 W) |
| Supported video formats | 480i/p, 576i/p, 720p/50 Hz, 720p/60 Hz, 1080i/50 Hz, 1080i/60 Hz, 1080p/24 Hz, 1080p/50 Hz, 1080p/60 Hz |
| Audio output | Stereo / Bilingual NICAM: B/G, I, D/K, A2 Stereo: B/G |
| Dimensions (LC‑26D1H) | 659.8 mm × 501.4 mm × 440 mm |
All three models operate on an AC supply of 110‑240 V at 50/60 Hz.
The HDMI inputs support resolutions from 480i/p up to 1080p/60 Hz, including 720p/50 Hz and 1080i/50 Hz.
