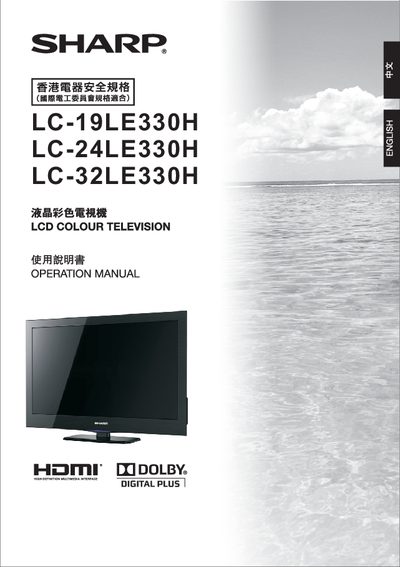

This file is the user manual for LC-19LE330H, LC-24LE330H, LC-32LE330H televisions. It introduces the safety and warning, installation instructions, remote control, option table operation, common problems and solutions, outline and specifications.
This manual provides safety warnings, installation instructions, remote‑control usage, and troubleshooting for the LG LC‑19LE330H, LC‑24LE330H and LC‑32LE330H LCD televisions. It emphasizes precautions against electric shock, fire hazards, and proper handling of high‑voltage components.
The guide also details connection options (HDMI, USB, component, AV, antenna), dimensional drawings, and full technical specifications such as screen size, resolution, power requirements, and audio output. It includes step‑by‑step procedures for mounting the base, connecting external devices, and selecting input sources. This manual is written in Chinese.
| Resolution | 1366 × 768 (19"), 1920 × 1080 (24" & 32") |
|---|---|
| Backlight System | LED |
| AC Power Requirement | 110‑240 V, 50/60 Hz |
| Audio Output Power | 2 × 3 W (19"), 2 × 7.5 W (24" & 32") |
| Supported Video Input Formats | Component (YPbPr), CVBS, VGA, HDMI (480i/p, 576i/p, 720p/50‑60 Hz, 1080i/50‑60 Hz, 1080p/24‑60 Hz) |
The TV accepts component (YPbPr), CVBS, VGA and HDMI signals, supporting formats such as 480i/p, 576i/p, 720p (50 Hz/60 Hz), 1080i (50 Hz/60 Hz) and 1080p (24 Hz/50 Hz/60 Hz).
