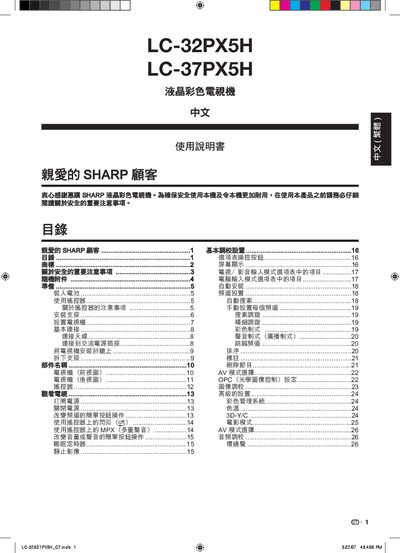

This manual describes the operation of the LC-32PX5H and LC-37PX5H LCD colour televisions.
This manual begins with important safety warnings, a list of included accessories, and step‑by‑step instructions for preparing the TV, installing the stand or wall‑mount, and connecting power and antenna cables. It also explains how to safely handle the remote control, replace its batteries, and configure the child‑safety lock.
Later sections cover basic operation such as turning the TV on and off, changing channels, adjusting volume, using HDMI and other inputs, and fine‑tuning picture and sound settings. The appendix contains a fault‑analysis guide, RS‑232C port specifications, and a full list of technical specifications for both models. This manual is written in Chinese.
| Screen size (LC-32PX5H) | 32" (80 cm) Black TFT |
|---|---|
| Screen size (LC-37PX5H) | 37" (94 cm) Black TFT |
| Power consumption (typical) | 158 W (0.8 W standby) |
| Viewing angle | Horizontal 176°, Vertical 176° |
| Audio amplifier power | 10 W |
| HDMI input formats | 480P, 576P, 720P/60Hz, 1080I/50Hz, 1080I/60Hz |
| Power supply | AC 110‑240 V, 50 Hz |
Only the Sharp AN‑37AG2 wall‑mount bracket is approved for the LC‑32PX5H and LC‑37PX5H models; using other brackets may cause unsafe installation.
Always unplug the TV from the AC outlet before attaching or removing the power cord.
The remote uses two AAA batteries, which are supplied with the TV.
