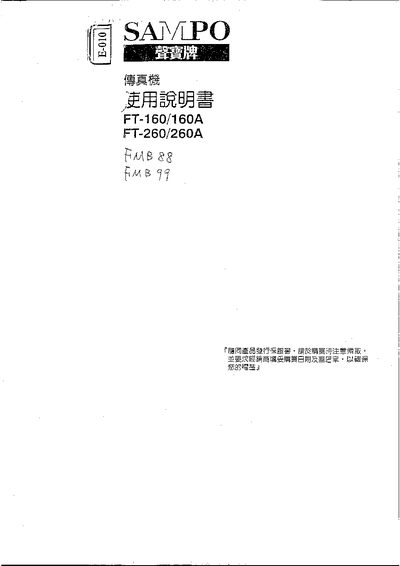

Sampo FT-160/160A/260/260A User Manual

About this manual

This manual covers the installation and wiring of the FT‑160/160A and FT‑260/260A units, including power connection, telephone line hookup, and optional accessories. Detailed descriptions of the control panel, function keys, and menu settings guide users through daily operation such as copying, faxing, and automatic paper handling.

Additional sections address safety precautions, cleaning procedures for the scanning head and print head, paper loading, and troubleshooting common errors. The document also includes specifications, timing settings, and communication parameters for integration with PBX systems. This manual is written in Japanese.

What's inside

• 外部部品紹介 (External parts overview)
• 機能キー操作概要 (Function key operation summary)
• 接続と配線 (Wiring and installation)
• 日時・識別名設定 (Date/time and identification name settings)
• 通信設定 (Communication settings)
• 安全注意事項 (Safety precautions)
• 紙の取り扱い (Paper handling)
• 清掃方法 (Cleaning methods)
• 故障診断 (Fault diagnosis)

Specifications

Frequently asked questions

Can the FT‑260 model automatically cut paper?

Yes, the FT‑260 includes an automatic paper‑cutting function, which the FT‑160 does not have.
