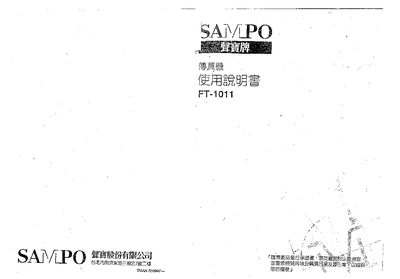

This manual covers safety precautions, installation steps, and the required accessories for the FT-1011 fax machine. It explains how to connect power, telephone lines, and optional fax/telephony switching functions while keeping required clearances around the device.
The guide details daily operation, function‑key usage, fax settings, troubleshooting, and regular cleaning and maintenance procedures. It also lists technical specifications such as power consumption, dimensions, and paper handling requirements. This manual is written in Chinese.
| Power Supply | 140V 60Hz |
|---|---|
| Standby Power | 5W (max 115W) |
| Dimensions (W×H×D) | 297 mm × 240 mm × 402 mm |
| Resolution (Standard) | 3.85 lines/mm × 8 pels/mm |
| Resolution (Fine) | 77 lines/mm × 8 pels/mm |
Clean the print head every six months using a soft cloth dampened with alcohol, then dry with a dry cloth.
Use a standard indoor 110 V AC power source; do not mix with 220 V.
Enter the date and time using the function keys in 24‑hour format, adding leading zeros for single‑digit values.
