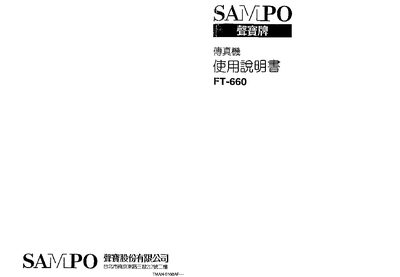

Sampo FT-660 Fax Machine User Manual

About this manual

This manual covers the installation and wiring of the FT-660, including how to connect power, telephone lines, and load recording paper. It explains configuration of the clock, identification name, fax transmission settings, and various communication modes such as group reception and international fax.

The guide also details normal operation, troubleshooting steps, and maintenance procedures such as cleaning the scanner and replacing the ink cartridge. Memory management, paper handling, and safety precautions are described to ensure reliable performance. This manual is written in Japanese.

What's inside

• Safety Precautions
• Specifications
• Installation and Wiring
• Paper Loading and Size Selection
• Clock and Identification Settings
• Fax Transmission Settings
• Memory Management
• Troubleshooting
• Maintenance Procedures

Specifications

Frequently asked questions

How do I set the date and time on the FT-660?

Enter the Date/Time Set function, input the year, month, day, hour and minute using the numeric keypad, then confirm to start the clock.

How can I clear the stored memory on the fax machine?

Select the Memory Clear option (section 4.4) to erase all stored data.

What paper size should I select for recording paper?

Choose the A4/LETTER 8.5 size option in the paper size selection menu.
