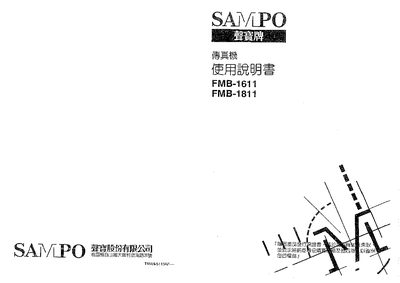

This manual introduces the Sampo FMB-1611 and FMB-1811 fax machines, covering product specifications, safety precautions, and the physical layout of the unit. It details the dimensions of the original document feeder, supported paper sizes, resolution, power requirements, and operating environment.
The guide explains how to install and wire the machine, load paper, configure date/time and identification settings, operate function keys, and perform routine maintenance and troubleshooting. Safety clearances, proper ventilation, and cleaning procedures are also described. This manual is written in Chinese.
| Standard paper size | 216 mm × 297 mm |
|---|---|
| Maximum paper length | 216 mm × 1000 mm |
| Minimum paper size | 170 mm × 60 mm |
| Resolution (standard) | 385 lines/mm × 8 pels/mm |
| Resolution (fine) | 77 lines/mm × 8 pels/mm |
| Supported transmission speeds | 9600, 7200, 4800, 2400 bps |
| Power supply | Single‑phase AC 110V/220V 60 Hz |
| Standby power | 6 W |
| Maximum power consumption | 145 W |
| Operating temperature | 5 °C – 35 °C |
| Operating humidity | 30 % – 85 % |
