This file mainly introduces the safety precautions and installation requirements of gas water heaters, including gas types, installation positions, and installation distances

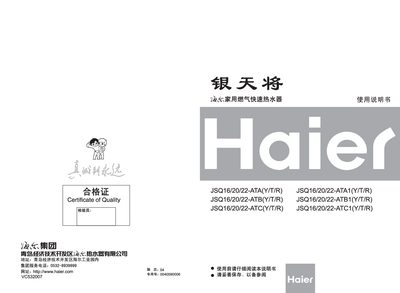

This manual outlines essential safety precautions for the Haier JSQ16/20/22-ATA gas quick water heater, including the prohibition of using any gas type other than that specified on the nameplate and the need to shut off the gas valve and ensure the flame is out before leaving the premises. It also details proper installation requirements such as ventilation, minimum distances from combustible materials, and exhaust pipe routing.
Operational guidance covers correct use of the supplied nozzle, regular cleaning of the filter and outer shell, and routine maintenance procedures. Warranty information, parts list, and an electrical schematic are also provided to assist users and service technicians. This manual is written in Chinese.
| Start water volume | 3±0.5 L |
|---|---|
| Power consumption | 42 W |
| Maximum exhaust pipe length | 3 m |
| Minimum bend angle | 90° |
| Minimum bend radius | 90 mm |
| Minimum distance from exhaust outlet to neighbor | 600 mm |
No. The heater must only be used with the gas type indicated on its nameplate; other gases are prohibited.
Check that the flame is completely out and close the gas valve; never leave the heater on or the flame lit when away.
After a period of use, the filter should be inspected and cleaned to keep the heater operating properly.
Wipe the shell with a damp cloth, then dry it with a clean dry cloth; avoid chemical cleaners.
