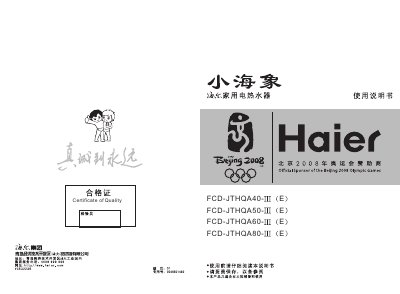

The Haier FCD‑JTHQA series water heater manual provides installation, operation, safety, and maintenance instructions.
This manual covers safety warnings, installation steps, usage instructions, and regular maintenance for the Haier FCD‑JTHQA household water heater series (40 L, 50 L, 60 L, 80 L). It includes detailed diagrams, technical parameters, and troubleshooting guidance.
Key sections include safety alerts with ground‑line monitoring, step‑by‑step installation on a wall‑mounted unit, how to adjust temperature and flow, cleaning of the heating element and inner tank, and warranty information. This manual is written in Chinese.
| Rated Voltage | 220 V, 50 Hz |
|---|---|
| Power | 1500 W |
| Rated Pressure | 0.75 MPa |
| Minimum Supply Pressure | 0.05 MPa |
| Capacity (model 40‑E) | 40 L |
| Capacity (model 50‑E) | 50 L |
| Capacity (model 60‑E) | 60 L |
| Capacity (model 80‑E) | 80 L |
Stop using the heater immediately, unplug the power cord, and contact the after‑sales service department.
The heating element and inner tank should be cleaned every three years.
The heater has a one‑year warranty from the date of purchase, with free repair during that period.
The water supply pressure must be at least 0.05 MPa.
