This certificate is the quality certificate of FCD-5, which lists the product's specifications such as rated power, rated voltage, power supply voltage, power supply frequency, rated flow rate, outlet pressure, etc.

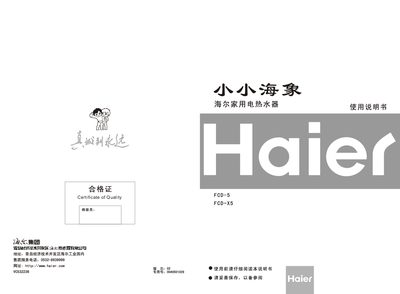

This manual covers the Haier FCD-5 and FCD-X5 electric water heaters, describing their features, safety measures, and proper usage. It is intended for end‑users and installers in mainland China.
The document includes sections on installation, first‑time use, regular operation, precautions, after‑sales service, technical specifications, and a troubleshooting guide. Electrical wiring diagrams and dimension drawings are also provided. This manual is written in Chinese.
| Power | 1000 W |
|---|---|
| Rated Pressure | 0.75 MPa |
| IP Rating | IP4 (防沽型) |
Press the test button 1–2 times each month; the reset button will pop up, indicating the protection plug is functioning correctly.
Verify that the water supply is not stopped, that water pressure is adequate, and that the inlet is not blocked; also ensure the heating element is turned on.
For the FCD‑5, open the safety valve handle to let water flow out; for the FCD‑X5, remove the unit from the pipe and flip it upside down to drain.
